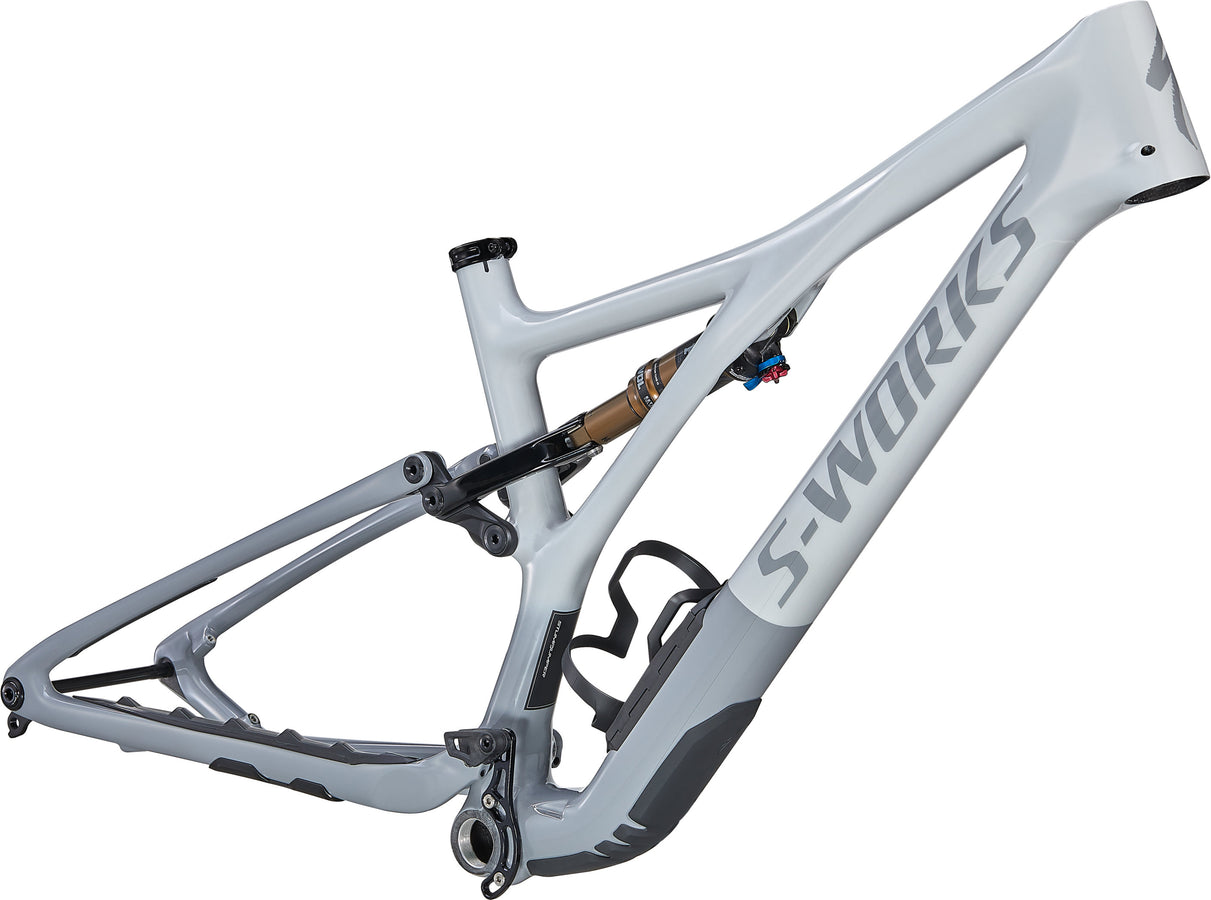

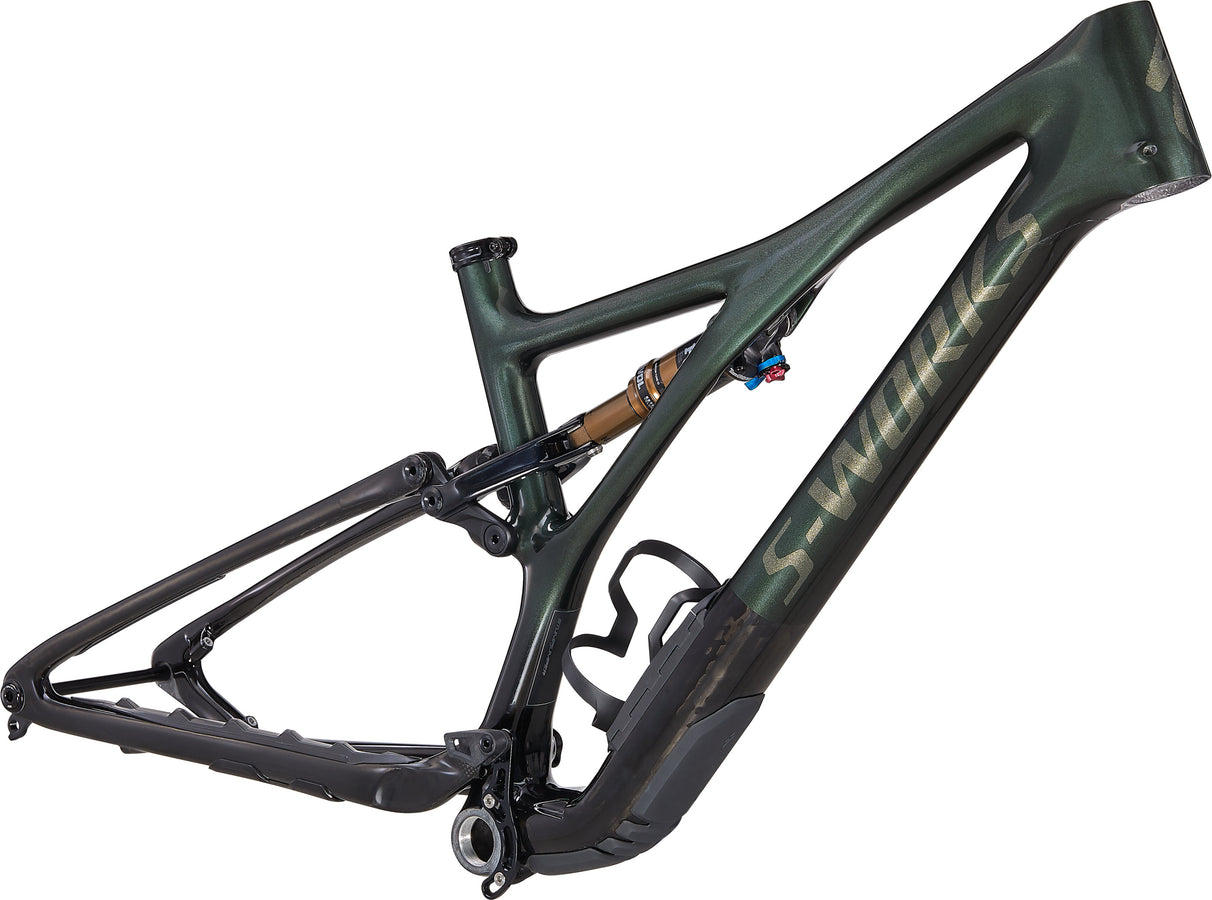

S-Works Stumpjumper Frame
เฟรมจักรยาน S-Works Stumpjumper Frame
Part No.: 73321-0001
When we say "The Ultimate Trail Bike," we mean it—the all-new Stumpjumper is everything you could ever ask for in a trail-ripping steed. Want a bike that climbs with ease? The Stumpjumper delivers, thanks to a ground-up suspension redesign and ... Read More
S-Works Stumpjumper Frame
฿102,000.00
When we say "The Ultimate Trail Bike," we mean it—the all-new Stumpjumper is everything you could ever ask for in a trail-ripping steed. Want a bike that climbs with ease? The Stumpjumper delivers, thanks to a ground-up suspension redesign and lightest-in-class frame weight. How about something that's ready to shred when the trail turns downhill? That suspension re-design - paired with new Trail Geometry and the Rider-First Engineered™ frame’s perfect blend of stiffness and light weight - turns the Stumpjumper into an absolute monster descending. Point it where you want to go and let the party begin.
The S-Works Stumpjumper frame is the perfect starting point for you to envision your own interpretation of the Ultimate Trail Bike. Start with our supremely light, incredibly strong, FACT 11m carbon frame. Then dress it to suit your needs, whether those needs be singletrack soul surfing or death-grip mayhem.
- THE TRAIL BENCHMARK — When we set out to design the all-new Stumpjumper, we pursued some hefty goals. It had to excel on any kind of trail, for every style of rider. To achieve that, we went after serious weight reduction without sacrificing durability, a stiff, responsive chassis that still rides light and lively, geometry that improves everyone’s riding, and the best suspension kinematics we know how to design. Turns out, you can have your cake and eat it too with the new Stumpjumper.
- THE SWEETEST 130MM OF TRAVEL YOU’LL EVER RIDE — We massaged the kinematics of the Stumpjumper suspension to bring out the very best all-round performance possible in a 130mm package. Countless hours of suspension lab development and field testing created a refined mid-travel ripper that eats big terrain like a gravity fed beast, handles like a dream everywhere, and climbs like it has a motor.
- PROGRESSIVE GEOMETRY — The S-Sizing geometry of the new Stumpjumper hits the progressive sweet spot. It’s long, low and slack, with a short offset fork and a steeper seat tube angle. These numbers combine to make your ride more stable, more carvealicious, more comfortable climbing, more better everywhere. With FlipChip adjustability you’re able to further fine-tune your fit, ensuring that your new Stumpjumper performs flawlessly on whatever terrain you choose.
- RIDER-FIRST ENGINEERED™ — Rider-First Engineered™ frames use a size-specific approach to ride characteristics that ensures benchmark handling and flawless performance, regardless of frame or rider size. Whether you’re a jump-happy grom riding an S1, or a DH-fiend giant in need of the lengthy S6, you’ll experience the same ride traits – rail-sharp cornering and balanced front and rear stiffness – at the lightest-possible weight, And by light, we mean real light: 2,250 grams (S-Works, S-3 size, with rear shock).
- SWAT™ — When we introduced the SWAT™ door on the Stumpjumper in 2016, we increased pocket space, and added room for those “oh s**t” pumps and flat accessories. With the new Stumpjumper, we’ve kept those same design hallmarks that you know and love.
Technical Specifications
Suspension
| Rear Shock | FOX FLOAT DPS Factory, Rx Trail Tune, EVOL Air sleeve, Kashima Coat, 3-position adjustment w/ Open Mode Adjustment, 190x45mm |
FRAMESET
| Frame | FACT 11m carbon chassis and rear-end, carbon shock extension, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, flip chip Head Tube/Bottom Bracket adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm of travel |
| Seat Binder | Alloy, 38.6 |
| SWAT | SWAT™ Door integration |
* Specifications are subject to change without notice
Manual Downloads
Epic - Geometry
Geometry
| S1 | S2 | S3 | S4 | S5 | S6 | |
|---|---|---|---|---|---|---|
| Stack (BB Basso) | 614mm | 613mm | 622mm | 632mm | 641mm | 650mm |
| Stack (BB Alto) | 610mm | 609mm | 618mm | 627mm | 636mm | 646mm |
| Reach (BB Basso) | 410mm | 430mm | 450mm | 475mm | 500mm | 530mm |
| Reach (BB Alto) | 415mm | 435mm | 455mm | 480mm | 505mm | 535mm |
| Lunghezza piantone | 385mm | 385mm | 405mm | 425mm | 445mm | 465mm |
| Angolo sterzo (BB Basso) | 65deg | 65deg | 65deg | 65deg | 65deg | 65deg |
| Angolo Sterzo (BB Alto) | 65.5deg | 65.5deg | 65.5deg | 65.5deg | 65.5deg | 65.5deg |
| Altezza BB (BB Basso) | 328mm | 333mm | 333mm | 333mm | 333mm | 333mm |
| Altezza BB (BB Alto) | 335mm | 340mm | 340mm | 340mm | 340mm | 340mm |
| BB Drop (BB Basso) | 47mm | 42mm | 42mm | 42mm | 42mm | 42mm |
| BB Drop (BB Alto) | 40mm | 35mm | 35mm | 35mm | 35mm | 35mm |
| Trail (BB Basso) | 126mm | 126mm | 126mm | 126mm | 126mm | 126mm |
| Trail (BB Alto) | 123mm | 123mm | 123mm | 123mm | 123mm | 123mm |
| Lunghezza Forcella | 550mm | 550mm | 550mm | 550mm | 550mm | 550mm |
| Offset Forcella/Rake | 44mm | 44mm | 44mm | 44mm | 44mm | 44mm |
| Avancorsa | 724mm | 746mm | 770mm | 800mm | 829mm | 863mm |
| Lunghezza Batticatena | 432mm | 432mm | 432mm | 432mm | 442mm | 442mm |
| Interasse | 1152mm | 1175mm | 1200mm | 1228mm | 1268mm | 1302mm |
| Lunghezza tubo orizz. virtuale | 563mm | 583mm | 605mm | 632mm | 660mm | 692mm |
| Altezza Standover | 730mm | 734mm | 744mm | 749mm | 757mm | 757mm |
| Angolo Sella (BB Basso) | 76deg | 76deg | 76deg | 76deg | 76deg | 76deg |
| Angolo Sella (BB Alto) | 76.5deg | 76.5deg | 76.5deg | 76.5deg | 76.5deg | 76.5deg |
| Max Inserimento Reggisella | 220mm | 220mm | 240mm | 260mm | 280mm | 300mm |
| Min Inserimento Reggisella | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm |
Geometry
Trying to determine the best bike size for you? Not sure if your saddle height is set right? Retül is here to help. Find Your Size
